Grilles & Bezels

Our grilles and bezels are available without fans for trimming cabinet openings to match our cooling systems. Click HERE for wood species available. Roll over each picture for a larger view & other information.

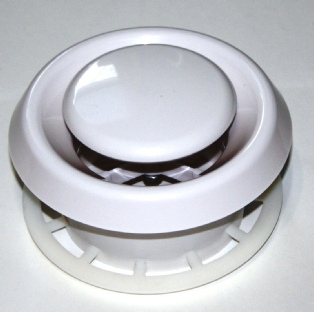

Plastic diffusers - Use to trim 4” tubing (System 1, Cool-cube)

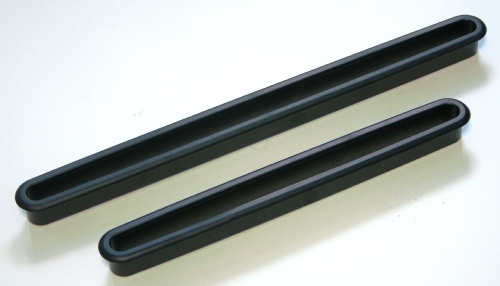

Use these to trim slots in cabinetry.

03-121-01    1 3/8” x 12 3/4”

03-122-01     1 3/8” x 17”

Click here for cutout dimensions

03-109-02

(New work)

03-109-01

(Old work)

 12-013-XX

R.O.: 2 1/4” x 7”

Face: 3” x 8”

 10-102-XX

R.O.: 4 1/8” x 14 1/8”

Face: 5 1/2” x 15 1/2”

 10-103-XX

R.O.: 6  1/8” x 14 1/8”

Face: 7 1/8” x 15 1/2”


Anodized aluminum


Part #:      10-106-01                 10-107-01

R.O.:     14 1/4” x 2 1/2”         29 1/8” x 2 1/2”

Face:     15 3/8” x 3 1/2”         30 1/4” x 3 3/8”

Our wood grilles - Attractive & well-made. We supply these unfinished in many choices of wood species.

When ordering, substitute wood codes for XX in part number.

12-011-XX-I

R.O,: 14 3/4” x 2 1/8”

Face: 16 3/8” x 3 1/2”

12-012-XX-I

R.O,: 28 1/4” x 2 1/8”

Face: 30” x 3 1/2”

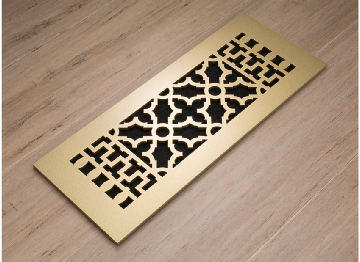

Cast Aluminum and Laser-cut Steel Registers by Reggio Registers

Available with and without fans in three styles and 6 colors

See notes below for more information…

About these styles…

All grilles come with mounting holes and matching screws.

Square and Scroll typically ship within a week and are available in cast aluminum and laser-cut steel. The Scroll style is also available in cast iron.

Versailles style grilles are all custom made, and typically take 4 to 5 weeks to ship. They are available in aluminum or steel in 1/8”, 3/16”, and 1/4” thicknesses.

Available sizes for all styles (outside dimensions)run from 3 1/2” x 12” to 32 1/2” x 20 1/2”, including 8”x8”, 10”x10”, and 5 1/2” x 10”. (Most HVAC duct sizes)


Grilles in grey can be painted using a paint made for metal - not latex paint.

Scroll

Square

Versailles
