There are times when a situation calls for the System 1's ability to move hot air through a tube to "somewhere else", but there's just not enough room for the System 1's tubing or centrifugal blower.

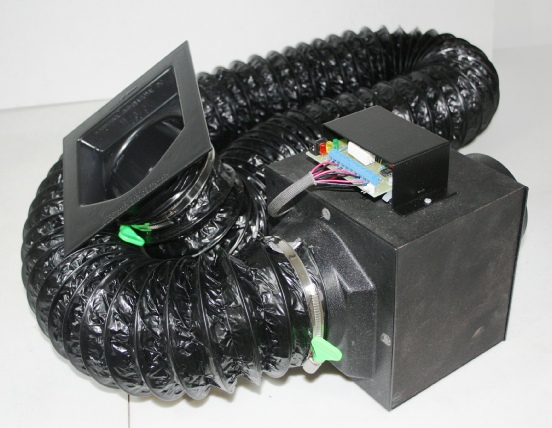

Cool-cube E was developed for the home theater design and installation community. Combining a compact power module with either 4", 3" or 2" flexible tubing, Cool-cube will pull heated air out of a closed mid-size cabinet, small closet, or enclosed video projector and quietly move it to a nearby closet, utility room, crawl space, etc. The power module measures 6" x 6" x 10" and is powerful enough to move a useful amount of air through tubing thin enough to snake through all but the most crowded cabinets.

The Cool-cube E features a new control system, activated by a remote temperature-sensing probe,with field-adjustable temperature set-points and speeds.  The noise level generated even at high speed is low (when used with the insulated 4”tubing) in keeping with our policy of not “trading a heat problem for a noise problem”.

Cool-cube's power module can be located at either end of (or at any point along) the tubing.  A compact hot air collector, or flange, is provided so that the tubing is easily connected to any flat surface.

Order the Cool-cube with 4" tubing if clearance allows, or with 3" or 2" tubing for those really tight situations. As little as 12 CFM of air movement means that the air in a typical 4' x 3' x 2' cabinet will be changed every two minutes. (This assumes free air flow; real-world installations will take somewhat longer for an air exchange)

See the airflow chart on the Specifications page for airflow with different tubing sizes and fan speeds.

00-120-04      Cool-cube with 8’ of 4” tubing

00-120-01      Cool-cube with 6’ of 3” tubing

00-120-02      Cool-cube with 6’ of 2” tubing
