Active Thermal Management

                                             The trusted name in thermal protection…

Cool-rack III

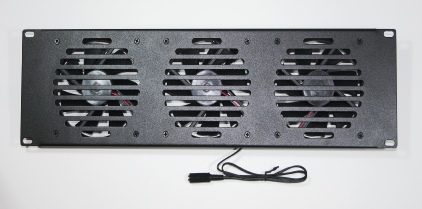

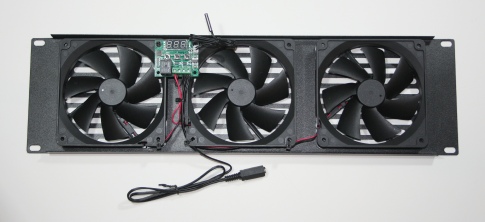

The Cool-rack III was designed to cool the mid-size to large rack. It’s 3 rack units high, and consists of 3 120mm fans and a thermal control with a remote sensor and small “set-up” temperature display.

If a 3U high space isn’t available on the front rack rails, or if there’s a door on the front of the rack, an effective cooling technique is to install the Cool-rack III on the rear rails of the rack. Install a 1or 2U vent panel, as open as possible, low on the front rails of the rack. As long as there is a space of at least 2" - 3" behind the rack, a stream of air will be generated that enters low in the front of the rack, and travels back and upward, cooling the equipment in the rack.


00-203-02    Cool-rack III

Click HERE for installation instructions

Click HERE for specifications

(Product video coming soon)
