Cool-line I and II

Recognizing the need for cooling products for narrow spaces, such as above or below flat-panel displays, or mounted on kick panels, we developed the Cool-line series of quiet ventilating devices.

Available in satin-anodized aluminum and a wide variety of unfinished woods, all Cool-line products measure 3 1/2” in height; length varies depending on the number of fans.  Units are available with 1 or 2 fans, and can be mounted horizontally or vertically.

The slim, linear styling of the Cool-line series makes it ideal for use in commercial and residential A/V and computer installations where quiet cooling is required and space is limited.  Powerful but quiet cross-flow fans are used in all models to move air in or out of the enclosure to be ventilated. Temperature

controlled and multi-speed, the fans are completely  automatic.

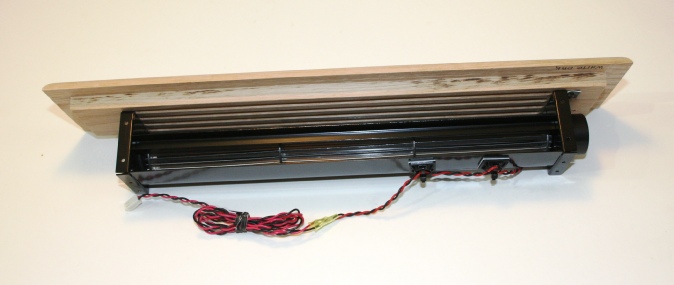

  The aluminum Cool-line systems ship configured to exhaust heated air

  from enclosures, but are easily changed in the field for use as intake

  devices. Wood Cool-line versions must be ordered as either intake or

  exhaust models. Matching grilles, both metal and wood, are available

  without fans to trim passive openings.

Click HERE for the list of available woods.

00-531-01          Cool-line I, anodized aluminum

00-521-XX-I      Cool-line I, wood, INTAKE

00-521-XX-E      Cool-line I, wood, EXHAUST

00-532-01          Cool-line II, anodized aluminum

00-522-XX-I      Cool-line II, wood, INTAKE   (special order)

00-522-XX-E      Cool-line II, wood, EXHAUST   (special order)

Click HERE for installation instructions - wood grille

Click HERE for installation instructions - metal grille

Click HERE for specifications (both)

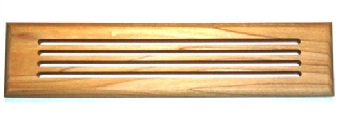

Intake grille

Exhaust grille

(Scroll down for product video)
